These cable and pipe transits are used in high-risk maritime, offshore and land-based environments to minimize danger by preventing the spread of fire, water, gas, chemicals and other hazards substances.
The system consists of a round rubber frame and rubber blocks. The RGP is assembled in sleeves, pipes, drilled or cast holes and packed with rubber blocks suited for each cable and pipe dimension. The compression bolts are tightened to compress the rubber blocks against cables and pipes to establish a tight seal.
RGP circular multi cable & pipe transits for assembly in sleeves, pipes, drilled or cast holes. It is available in 12 standard diameters 50, 70, 100, 125, 150, 200, 300 mm, 3", 4", 5", 6", 8" and is packed with MCT insert blocks. The hardware is available in galvanized or stainless steel (316L).
RGP 50/L60 (1.96")
RGP 50/L30 (1.96")
RGP 70 (2.75") or RGP 3" (76.2mm)
RGP 100 (3.93") or RGP 4" (101.6mm)
RGP 125 (4.92") or RGP 5" (127mm)
RGP 150 (5.90") or RGP 6" (152.4mm)
RGP 200 (7.87") or RGP 8" (203.2mm)
RGP 300 (11.8")
RGP has an open side intended for installation in holes where cables have already been pulled.
Sleeves are available in several diameters to suit each RGP size. They can be welded, casted or bolted to a structure. The standard materials are mild steel, stainless steel or aluminum.

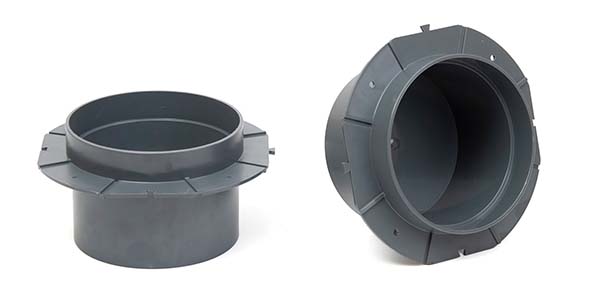

Concrete Casting Module
Using the CCM150 makes preparing and casting around RGP150 / RGPO150 penetrations very easy.
Weight Chart
MCT Brattberg standard sleeves are available in seven sizes, for welding or bolting to the structure. The standard materials are mild steel, stainless steel and aluminium. SFRB is also available in an open version (SFRBO).
- SFR/SFRB are supplied as kits, complete with drilled holes, bolts, nuts, washers and a gasket or sealing compound.
Designation | Sleeve Type | Material | Artnr | Weight kilograms | Weight pounds |
RGP 50/L60 | S | Primer | 2-00350550 | 0,6 | 1.3 |
RGP 50/L60 | SFR | Primer | 2-00350570 | 1,2 | 2.6 |
RGP 50/L60 | SFRB | Primer | 2-00350590 | 1,2 | 2.6 |
RGP 50/L60 | SFRBO | Primer | 2-00360590 | 1,2 | 2.6 |
RGP 50/L60 | S | Galvanized | 2-00350551 | 0,6 | 1.3 |
RGP 50/L60 | SFR | Galvanized | 2-00350571 | 1,2 | 2.6 |
RGP 50/L60 | SFRB | Galvanized | 2-00350591 | 1,2 | 2.6 |
RGP 50/L60 | SFRBO | Galvanized | 2-00360591 | 1,2 | 2.6 |
RGP 50/L60 | S | Stainless steel | 2-00350552 | 0,6 | 1.3 |
RGP 50/L60 | SFR | Stainless steel | 2-00350572 | 1,2 | 2.6 |
RGP 50/L60 | SFRB | Stainless steel | 2-00350592 | 1,2 | 2.6 |
RGP 50/L60 | SFRBO | Stainless steel | 2-00360592 | 1,2 | 2.6 |
RGP 50/L60 | S | Aluminium | |||
RGP 50/L60 | SFR | Aluminium | |||
RGP 50/L60 | SFRB | Aluminium | |||
RGP 50/L60 | SFRBO | Aluminium | |||
Designation | Sleeve Type | Material | Artnr | Weight kilograms | Weight pounds |
RGP 50/L30 | S | Primer | 2-00350500 | 0,3 | 0.6 |
RGP 50/L30 | SFR | Primer | 2-00350520 | 0,9 | 2.0 |
RGP 50/L30 | SFRB | Primer | 2-00350540 | 0,9 | 2.0 |
RGP 50/L30 | SFRBO | Primer | 2-00365040 | 0,9 | 2.0 |
RGP 50/L30 | S | Galvanized | 2-00350501 | 0,3 | 0.6 |
RGP 50/L30 | SFR | Galvanized | 2-00350521 | 0,9 | 2.0 |
RGP 50/L30 | SFRB | Galvanized | 2-00350541 | 0,9 | 2.0 |
RGP 50/L30 | SFRBO | Galvanized | 2-00365041 | 0,9 | 2.0 |
RGP 50/L30 | S | Stainless steel | 2-00350502 | 0,3 | 0.6 |
RGP 50/L30 | SFR | Stainless steel | 2-00350522 | 0,9 | 2.0 |
RGP 50/L30 | SFRB | Stainless steel | 2-00350542 | 0,9 | 2.0 |
RGP 50/L30 | SFRBO | Stainless steel | 2-00365042 | 0,9 | 2.0 |
RGP 50/L30 | S | Aluminium | |||
RGP 50/L30 | SFR | Aluminium | |||
RGP 50/L30 | SFRB | Aluminium | |||
RGP 50/L30 | SFRBO | Aluminium | |||
Designation | Sleeve Type | Material | Artnr | Weight kilograms | Weight pounds |
RGP 70 | S | Primer | 2-00350700 | 0,8 | 1.8 |
RGP 70 | SFR | Primer | 2-00350720 | 2,1 | 4.6 |
RGP 70 | SFRB | Primer | 2-00350740 | 2,1 | 4.6 |
RGP 70 | SFRBO | Primer | 2-00360740 | 2,1 | 4.6 |
RGP 70 | S | Galvanized | 2-00350701 | 0,8 | 1.8 |
RGP 70 | SFR | Galvanized | 2-00350721 | 2,1 | 4.6 |
RGP 70 | SFRB | Galvanized | 2-00350741 | 2,1 | 4.6 |
RGP 70 | SFRBO | Galvanized | 2-00360741 | 2,1 | 4.6 |
RGP 70 | S | Stainless steel | 2-00350702 | 0,8 | 1.8 |
RGP 70 | SFR | Stainless steel | 2-00350722 | 2,1 | 4.6 |
RGP 70 | SFRB | Stainless steel | 2-00350742 | 2,1 | 4.6 |
RGP 70 | SFRBO | Stainless steel | 2-00360742 | 2,1 | 4.6 |
RGP 70 | S | Aluminium | |||
RGP 70 | SFR | Aluminium | |||
RGP 70 | SFRB | Aluminium | |||
RGP 70 | SFRBO | Aluminium | |||
Designation | Sleeve Type | Material | Artnr | Weight kilograms | Weight pounds |
RGP 100 | S | Primer | 2-00351000 | 1,3 | 2.8 |
RGP 100 | SFR | Primer | 2-00351020 | 2,9 | 6.4 |
RGP 100 | SFRB | Primer | 2-00351040 | 2,9 | 6.4 |
RGP 100 | SFRBO | Primer | 2-00361040 | 2,9 | 6.4 |
RGP 100 | S | Galvanized | 2-00351001 | 1,3 | 2.8 |
RGP 100 | SFR | Galvanized | 2-00351021 | 2,9 | 6.4 |
RGP 100 | SFRB | Galvanized | 2-00351041 | 2,9 | 6.4 |
RGP 100 | SFRBO | Galvanized | 2-00361041 | 2,9 | 6.4 |
RGP 100 | S | Stainless steel | 2-00351002 | 1,3 | 2.8 |
RGP 100 | SFR | Stainless steel | 2-00351022 | 2,9 | 6.4 |
RGP 100 | SFRB | Stainless steel | 2-00351042 | 2,9 | 6.4 |
RGP 100 | SFRBO | Stainless steel | 2-00361042 | 2,9 | 6.4 |
RGP 100 | S | Aluminium | |||
RGP 100 | SFR | Aluminium | |||
RGP 100 | SFRB | Aluminium | |||
RGP 100 | SFRBO | Aluminium | |||
Designation | Sleeve Type | Material | Artnr | Weight kilograms | Weight pounds |
RGP 125 | S | Primer | 2-00351200 | 1,6 | 3.5 |
RGP 125 | SFR | Primer | 2-00351220 | 3,7 | 8.2 |
RGP 125 | SFRB | Primer | 2-00351240 | 3,7 | 8.2 |
RGP 125 | SFRBO | Primer | 2-00361240 | 3,7 | 8.2 |
RGP 125 | S | Galvanized | 2-00351201 | 1,6 | 3.5 |
RGP 125 | SFR | Galvanized | 2-00351221 | 3,7 | 8.2 |
RGP 125 | SFRB | Galvanized | 2-00351241 | 3,7 | 8.2 |
RGP 125 | SFRBO | Galvanized | 2-00361241 | 3,7 | 8.2 |
RGP 125 | S | Stainless steel | 2-00351202 | 1,6 | 3.5 |
RGP 125 | SFR | Stainless steel | 2-00351222 | 3,7 | 8.2 |
RGP 125 | SFRB | Stainless steel | 2-00351242 | 3,7 | 8.2 |
RGP 125 | SFRBO | Stainless steel | 2-00361242 | 3,7 | 8.2 |
RGP 125 | S | Aluminium | |||
RGP 125 | SFR | Aluminium | |||
RGP 125 | SFRB | Aluminium | |||
RGP 125 | SFRBO | Aluminium | |||
Designation | Sleeve Type | Material | Artnr | Weight kilograms | Weight pounds |
RGP 150 | S | Primer | 2-00351500 | 1,9 | 4.2 |
RGP 150 | SFR | Primer | 2-00351520 | 4,2 | 9.3 |
RGP 150 | SFRB | Primer | 2-00351540 | 4,2 | 9.3 |
RGP 150 | SFRBO | Primer | 2-00361540 | 4,2 | 9.3 |
RGP 150 | S | Galvanized | 2-00351501 | 1,9 | 4.2 |
RGP 150 | SFR | Galvanized | 2-00351521 | 4,2 | 9.3 |
RGP 150 | SFRB | Galvanized | 2-00351541 | 4,2 | 9.3 |
RGP 150 | SFRBO | Galvanized | 2-00361541 | 4,2 | 9.3 |
RGP 150 | S | Stainless steel | 2-00351502 | 1,9 | 4.2 |
RGP 150 | SFR | Stainless steel | 2-00351522 | 4,2 | 9.3 |
RGP 150 | SFRB | Stainless steel | 2-00351542 | 4,2 | 9.3 |
RGP 150 | SFRBO | Stainless steel | 2-00361542 | 4,2 | 9.3 |
RGP 150 | S | Aluminium | |||
RGP 150 | SFR | Aluminium | |||
RGP 150 | SFRB | Aluminium | |||
RGP 150 | SFRBO | Aluminium | |||
Designation | Sleeve Type | Material | Artnr | Weight kilograms | Weight pounds |
RGP 200 | S | Primer | 2-00352000 | 2,6 | 5.7 |
RGP 200 | SFR | Primer | 2-00352020 | 5,1 | 11.2 |
RGP 200 | SFRB | Primer | 2-00352040 | 5,1 | 11.2 |
RGP 200 | SFRBO | Primer | 2-00362040 | 5,1 | 11.2 |
RGP 200 | S | Galvanized | 2-00352001 | 2,6 | 5.7 |
RGP 200 | SFR | Galvanized | 2-00352021 | 5,1 | 11.2 |
RGP 200 | SFRB | Galvanized | 2-00352041 | 5,1 | 11.2 |
RGP 200 | SFRBO | Galvanized | 2-00362041 | 5,1 | 11.2 |
RGP 200 | S | Stainless steel | 2-00352002 | 2,6 | 5.7 |
RGP 200 | SFR | Stainless steel | 2-00352022 | 5,1 | 11.2 |
RGP 200 | SFRB | Stainless steel | 2-00352042 | 5,1 | 11.2 |
RGP 200 | SFRBO | Stainless steel | 2-00362042 | 5,1 | 11.2 |
RGP 200 | S | Aluminium | |||
RGP 200 | SFR | Aluminium | |||
RGP 200 | SFRB | Aluminium | |||
RGP 200 | SFRBO | Aluminium | |||
Designation | Sleeve Type | Material | Artnr | Weight kilograms | Weight pounds |
RGP 300 | S | Primer | 2-00353000 | 4,5 | 9.9 |
RGP 300 | SFR | Primer | 2-00353020 | 8,5 | 18.7 |
RGP 300 | SFRB | Primer | 2-00353040 | 8,5 | 18.7 |
RGP 300 | SFRBO | Primer | 2-00363040 | 8,5 | 18.7 |
RGP 300 | S | Galvanized | 2-00353001 | 4,5 | 9.9 |
RGP 300 | SFR | Galvanized | 2-00353021 | 8,5 | 18.7 |
RGP 300 | SFRB | Galvanized | 2-00353040 | 8,5 | 18.7 |
RGP 300 | SFRBO | Galvanized | 2-00363041 | 8,5 | 18.7 |
RGP 300 | S | Stainless steel | 2-00353002 | 4,5 | 9.9 |
RGP 300 | SFR | Stainless steel | 2-00353022 | 8,5 | 18.7 |
RGP 300 | SFRB | Stainless steel | 2-00353042 | 8,5 | 18.7 |
RGP 300 | SFRBO | Stainless steel | 2-00363042 | 8,5 | 18.7 |
RGP 300 | S | Aluminium | |||
RGP 300 | SFR | Aluminium | |||
RGP 300 | SFRB | Aluminium | |||
RGP 300 | SFRBO | Aluminium |
Resistance to fire:
EI 30-60-120-180 & E 30-60-120-240
(Contact MCT Brattberg for application details)
Declaration of Performance can be found here: CE
Maritime resistance to fire:
Class A0, A60, H0, H60, H120 - IMO FTP Code 2010
(For more info see Certificates)
Water-tightness:
5 Bar water pressure load for 60 minutes - DNVGL-CP-0165
- RGP-300: 3 Bar water pressure load for 60 minutes
Gas-tightness:
3 Bar air pressure load for 30 minutes - DNVGL-CP-0165
- RGP-300: 2 Bar air pressure load for 30 minutes
Enclosure degree of protection Nema 250:
3R; 4X; 12 - Nema 250-1st
Enclosure degree of protection IP:
IP65; IP66; IP67; IP68 2 meters 60 min - IEC 60529
Trade name:
MCT Brattberg RGP/RGPO multi cable/pipe transit system
Variations:
See Overview
Working temperature:
-65 to +70 degrees C
Read Lycron data sheet:
Data sheet Lycron
Lycron is halogen free and flame retardant.
For all approvals, please also see Certificates
To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.
For more information, please view following instructions, videos or download manuals as PDFs.
PRESSURE-TIGHT INSTALLATION
RGP All contact surfaces between the pipe and the RGP plug must be cleaned carefully prior to installation. Do not use any lubricant on these surfaces. All blocks must be lubricated carefully with MCT Brattberg lubricant. The penetration must not be subjected to pressure for at least 48 hours after installation. This is to allow the pressure to equalise throughout the penetration. It will take more time for the pressure to equalise at temperatures below 20°C.
Note: If the installation is subjected to pressure, all components must be replaced after removal and refitting.
