RGPM High Pressure

RGPM pressure seal approved for a continuous pressure up to 15 bar with almost unlimited designations of numbers and dimensions of cables and pipes.

Overview



  • Tailor made.
  • DNV-GL and ABS type approved.



Diameters:

  • Available in diameters 50 to 200mm for 15 bar water working pressure.
  • 25 to 675mm for 3.3 bar water working pressure working pressure.



Services:

  • Seal cables/pipes/tubes diameter 4-400 mm.

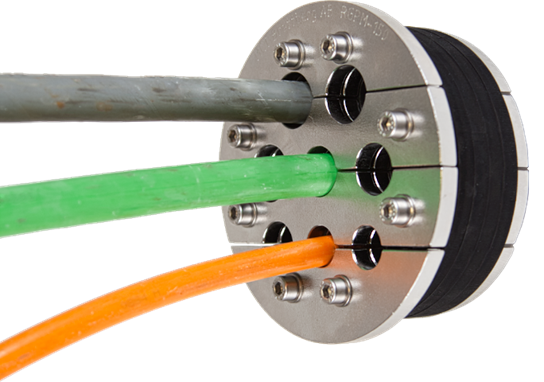

  • Seal multiple cables/pipes through on hole.
  • Can be made with a revolving core for easier pipe sealing.



RGPM

The design of a RGPM is made according to customers specification.
The outer diameter of the RGPM pressure seal is designed to match the inner diameter of the pipe or hole into which the unit is to be fitted.

The seals are normally made from Nitrile rubber but other material can be used. Fittings are either stainless steel, hot galvanized or in other materials according to customers requirements.

The RGPM can also be installed and blind packed for installation of cables or pipes at a later stage.

In installation where the pressure could vary, a self-sealing version of RGPM can be used. The seal adjust itself according to the pressure.



Inspections and tests:

Dimensional and visual inspected before delivery. Additional
tests can be performed to clients specification.



Certificates and reports:

• Factory Inspection and Test Report Certificate (optional).
• Material Test Certificate.
• Type Approved by DNV-GL and ABS for pressure up to 15 bar.



Instruction:

A detailed instruction manual is supplied with the RGPM.

Designs

Each RGPM is designed specially to the customers need.
Below you can find typical solutions.

Before we can give you a solutions some questions about the application is necessary.

You can read more here: RGPM Check List

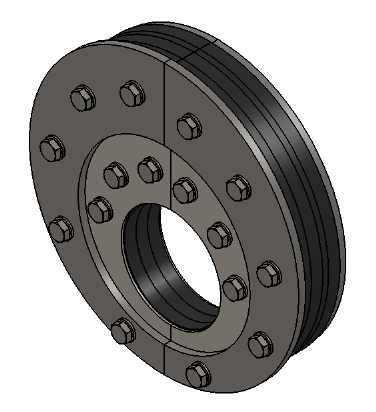

RGPM Standard

RGPM Standard

Use where pressure is coming from front, rear or both sides. Max pressure from front side is 15 bars and 5 bars from back side.

RGPM Oversized flange

RGPM Oversized flange

Allows the RGPM to be bolted to existing pipe flange plate. For use where pressure is applied from inside the pipe or where mechanical fixing is required. Max pressure is 15 Bars.

RGPM Small flange

RGPM Small flange

For use when the RGPM must be installed inside the pipe/sleeve and where pressure is applied from front, rear or both sides.
Max pressure without mechanical support is 5 bars.

Typical Installations



RGPM Large flange
RGPM Large flange
RGPM
RGPM
RGPM 600
