ALF cabinet seal EMC At Sea On land Cabinets
- Easy to install - no special tools needed
- Available in 2 types
- Complete kit
- Available as EMC
Overview
ALF cabinet seal is a cable penetration for applications where dust and water tightness are demanded. ALF comes as 2 different types, complete kit with gasket, sealing washers, bolts and nuts. Type 2 is also available with EMC protection.
- ALF TYPE 1 (Standard)
- ALF TYPE 2 (ALU)
- ALF TYPE 2 (EMC)
For standard sizes please see instructions and datasheet, but product can also be supplied in multiple variations to suit customer requirements. ALF allows many cables to be installed into a small area, the clear opening and remove-able sides facilitate the installation of pre-terminated cables.
The cables are individually sealed with 30 mm deep Lycron inserts which are supplied from MCT Brattbergs.
ALF is compressed with two socket headed bolts using a standard 6 mm Allen key the simplicity of the system ensures it is easy to add or remove cable as required.
ALF is an anodized aluminium frame and supplied with a gasket, stainless steel fixing bolts, and sealing washers. See datasheet for exact components and materials for your ALF type.

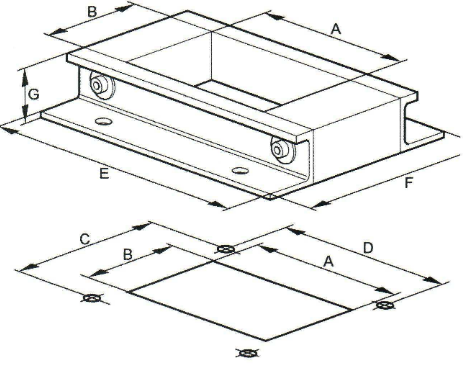

Pictures ALF Frames
Performance
Performance all ALF:
| STANDARD | RATING |
| EN-45545-3 / EN-1363-1 | ALF transit in Stainless steel and ALU = EI30 E60 *No Conduit |
| UL50 NEMA | 3R / 4X / 12 |
| IEC 60529 | IP66 / IP67 |
ALF is installed with MCT Brattberg Lycron Blocks.
Lycron is halogen free and flame retardant.
Instructions
Correct and safe installations
To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.
For more information, please view following instructions, videos or download manuals as PDFs.
