RFCS / CS Cabinet seal At Sea On land Cabinets

MCT Brattberg RFCS Cabinet seal open frame is available in three basic sizes of 10, 12 & 16 with an extension provision to size 20, 30, 40, 24, 36, 48, 32 respectively. It's a price competitive openable/retrofit alternative to heavy duty plug in connectors and cable glands plates in the cabinets.

MCT Brattberg CS Cabinet seals closed frame is avilable in basic sizes of 8, 10, 12, 16 and 18. It's a price competitive alternative to heavy duty plug in connectors and cable glands plates in the cabinets.

  • Can be made in larger variations
  • Open frames are retrofit
  • Flexibel
  • Corrosion resistant
  • Light-weight
IP 65/67
IP 65/67
Type 4x
Type 4x
RFCS cabinet seal

RFCS/CS Overview

RFCS Openable Frame
- Heavy duty
- 100% Flexible
- Fully Retrofit

CS Closed Frame
- Fast assembly
- Cost efficient
- Pre-terminated plugs/connectors

RFCS Open Frame Kit Variations:

RFCS 10 Open

  1. RFCS 10/4 - 2x Cable/pipe range Ø 2.5-16.0 & 2x 14.5-33.0  (mm)
  2. RFCS 10/7 - 6x Cable/pipe range Ø 2.5-16.0 & 1x 14.5-33.0  (mm)
  3. RFCS 10/10 - 10x Cable/pipe range Ø 2.5-16.0 (mm)
    Weight: 900g

RFCS 20 Open

  1. RFCS 20/8 - 4x Cable/pipe range Ø 2.5-16.0 & 4x 14.5-33.0 (mm)
  2. RFCS 20/14 - 12x Cable/pipe range Ø 2.5-16.0 & 2x 14.5-33.0 (mm)
  3. RFCS 20/20 - 20x Cable/pipe range Ø 2.5-16.0 (mm)
    Weight: 1200g

RFCS 30 Open

  1. RFCS 30/12 - 3x Cable/pipe range Ø 2.5-16.0 & 6x 14.5-33.0 (mm)
  2. RFCS 30/21 - 9x Cable/pipe range Ø 2.5-16.0 & 3x 14.5-33.0 (mm)
  3. RFCS 30/30 - 15x Cable/pipe range Ø 2.5-16.0 (mm)
    Weight: 1700g

RFCS 40 Open

  1. RFCS 40/16 - 34 Cable/pipe range Ø 2.5-16.0 & 8x 14.5-33.0 (mm)
  2. RFCS 40/28 - 12x Cable/pipe range Ø 2.5-16.0 & 4x 14.5-33.0 (mm)
  3. RFCS 40/40 - 20x Cable/pipe range Ø 2.5-16.0 (mm)
    Weight: 1900g

RFCS 12 Open

  1. RFCS 12/3 - 3x Cable/pipe range Ø  14.5-33.0  (mm)
  2. RFCS 12/6 - 4x Cable/pipe range Ø 2.5-16.0 & 2x 14.5-33.0  (mm)
  3. RFCS 12/9 - 8x Cable/pipe range Ø 2.5-16.0 & 1x 14.5-33.0  (mm)
  4. RFCS 12/12 - 12x Cable/pipe range Ø 2.5-16.0 (mm)
    Weight: 1000g

RFCS 24 Open

  1. RFCS 24/6 - 6x Cable/pipe range Ø 14.5-33.0 (mm)
  2. RFCS 24/12 - 8x Cable/pipe range Ø 2.5-16.0 & 4x 14.5-33.0 (mm)
  3. RFCS 24/18 - 16x Cable/pipe range Ø 2.5-16.0 & 2x 14.5-33.0 (mm)
  4. RFCS 24/24 - 24x Cable/pipe range Ø 2.5-16.0 (mm)
    Weight: 1400g

RFCS 36 Open

  1. RFCS 36/9 - 9x Cable/pipe range Ø 14.5-33.0 (mm)
  2. RFCS 36/18 - 6x Cable/pipe range Ø 2.5-16.0 & 6x 14.5-33.0 (mm)
  3. RFCS 36/27 - 12x Cable/pipe range Ø 2.5-16.0 & 3x 14.5-33.0 (mm)
  4. RFCS 36/36 - 18x Cable/pipe range Ø 2.5-16.0 (mm)
    Weight: 1800g

RFCS 48 Open

  1. RFCS 48/12 - 12x Cable/pipe range Ø 14.5-33.0 (mm)
  2. RFCS 48/21 - 12x Cable/pipe range Ø 2.5-16.0 & 9x 14.5-33.0 (mm)
  3. RFCS 48/30 - 24x Cable/pipe range Ø 2.5-16.0 & 6x 14.5-33.0 (mm)
  4. RFCS 48/39 - 36x Cable/pipe range Ø 2.5-16.0 & 3x 14.5-33.0 (mm)
    Weight: 2100g

RFCS 16 Open

  1. RFCS16/4 - 4x Cable/pipe range Ø 14.5-33.0 (mm)
  2. RFCS16/7 - 4x Cable/pipe range Ø 2.5-16.0 & 3x 14.5-33.0  (mm)
  3. RFCS16/10 - 8x Cable/pipe range Ø 2.5-16.0 & 2x 14.5-33.0  (mm)
  4. RFCS16/13 - 12x Cable/pipe range Ø 2.5-16.0 & 1x 14.5-33.0  (mm)
  5. RFCS16/16 - 16x Cable/pipe range Ø 2.5-16.0  (mm)
    Weight: 1100g

RFCS 32 Open

  1. RFCS 32/8 - 8x Cable/pipe range Ø 14.5-33.0 (mm)
  2. RFCS 32/14 - 8x Cable/pipe range Ø 2.5-16.0 & 6x 14.5-33.0 (mm)
  3. RFCS 32/20 - 16x Cable/pipe range Ø 2.5-16.0 & 4x 14.5-33.0 (mm)
  4. RFCS 32/26 - 24x Cable/pipe range Ø 2.5-16.0 & 2x 14.5-33.0 (mm)
  5. RFCS 32/32 - 32x Cable/pipe range Ø 2.5-16.0 (mm)
    Weight: 1600g

RFCS 48 Open

  1. RFCS 48/12 - 12x Cable/pipe range Ø 14.5-33.0 (mm)
  2. RFCS 48/21 - 6x Cable/pipe range Ø 2.5-16.0 & 9x 14.5-33.0 (mm)
  3. RFCS 48/30 - 12x Cable/pipe range Ø 2.5-16.0 & 6x 14.5-33.0 (mm)
  4. RFCS 48/39 - 18x Cable/pipe range Ø 2.5-16.0 & 3x 14.5-33.0 (mm)
  5. RFCS 48/48 - 24x Cable/pipe range Ø 2.5-16.0
    Weight: 2100g

RFCS 64 Open

  1. RFCS 64/16 - 16x Cable/pipe range Ø 14.5-33.0 (mm)
  2. RFCS 64/28 - 8x Cable/pipe range Ø 2.5-16.0 & 12x 14.5-33.0 (mm)
  3. RFCS 64/40 - 16x Cable/pipe range Ø 2.5-16.0 & 8x 14.5-33.0 (mm)
  4. RFCS 64/52 - 24x Cable/pipe range Ø 2.5-16.0 & 4x 14.5-33.0 (mm)
  5. RFCS 64/64 - 32x Cable/pipe range Ø 2.5-16.0
    Weight: 2100g

CS Closed Frame Kit Variations:

CS 8 Closed

  1. CS 8/2 - 2x Cable/pipe range Ø 2x 14.5-33.5  (mm)
  2. CS 8/5 - 2x Cable/pipe range Ø 2.5-16.0 & 1x 14.5-33.5  (mm)
  3. CS 8/8 - 4x Cable/pipe range Ø 2.5-16.0 (mm)
    Weight: 800g

CS 10 Closed

  1. CS 10/4 - 1x Cable/pipe range Ø 2.5-16.0 & 2x 14.5-33.5  (mm)
  2. CS 10/7 - 3x Cable/pipe range Ø 2.5-16.0 & 1x 14.5-33.5  (mm)
  3. CS 10/10 - 5x Cable/pipe range Ø 2.5-16.0 (mm)
    Weight: 900g

CS 12 Closed

  1. CS 12/3 - 3x Cable/pipe range Ø 14.5-33.5  (mm)
  2. CS 12/6 - 2x Cable/pipe range Ø 2.5-16.0 & 2x 14.5-33.5  (mm)
  3. CS 12/9 - 4x Cable/pipe range Ø 2.5-16.0 & 1x 14.5-33.5  (mm)
  4. CS 12/12 - 6x Cable/pipe range Ø 2.5-16.0 (mm)Weight: 1000g

CS 16 Closed

  1. CS 16/4 - 4x Cable/pipe range Ø 14.5-33.5  (mm)
  2. CS 16/7 - 2x Cable/pipe range Ø 2.5-16.0 & 3x 14.5-33.5  (mm)
  3. CS 16/10 - 4x Cable/pipe range Ø 2.5-16.0 & 2x 14.5-33.5  (mm)
  4. CS 16/13 - 6x Cable/pipe range Ø 2.5-16.0 & 1x 14.5-33.5  (mm)
  5. CS 16/16 - 8x Cable/pipe range Ø 2.5-16.0 (mm)Weight: 1200g

CS 18 Closed

  • CS 18/3-C
    3x 60 modules: 3x Cable/pipe range Ø 32 - 55 (mm)

Sealing Modules

Complete in every kit

RFCS modules and Press wedge

MCT Brattberg RFCS/CS Kit contains:

  • Openable frame (RFCS).
  • Sealing modules marked with cable diameter.
  • Compression wedge.
  • Gasket for sealing frame to cabinet.
  • Mounting Hardware.
  • Installation Manual.
  • Lubricant.

Features and Benefits

  • Multiple cables can be routed through the frame
    More cables can be installed into the box or equipment than with glands.
  • Multiple frame variations with limited parts
    Same frame for new or retrofit installations. Few parts required to adjust to larger openings.
  • FL 21 (RFCS-12)
    Uniform standard opening/Knock-off holes in housing cabinets. Fast production line assembly and reduced planning.
  • Open Frame and openable modules
    No surprises in field, cables with large connectors don’t need to be terminated or prepped for routing compare to conventional plug in connectors & cable glands.
  • Adjustable Block
    Limited inventory needed in stock, Limited parts needed at installation location.
  • Modules marked with cable designation
    Faster installation, proactively ensures correct installation. No Field decision making.
  • Reusable insert layers
    Increased efficiency and safety of product, Much easier to install the seal correctly, possible to correct errors.
  • Plugged block
    Frame is ready for new cables, without new parts.
  • Back retention stopping flange
    Easier installation in horizontal application.
  • Mini PTG compression Unit
    Can be installed inside or outside the box for increased safety, can be installed on top or bottom of frame for easier Installation.
  • Certification
    Easy to identify conformance.
  • Inspectable Parts
    Increased safety.

Data

Modules:
EPDM

Aluminium:
Grade ADC-12

Gasket between frame and cabinet:
EPDM

Gasket between frame halves:
EPDM

Plastic gasket washer:
LDPE

Mounting hardware:
SS-304

EPDM is Halogen Free and Low smoke.

RFCS Drawings:

RFCS 3D-STEP:

EPLAN

With EPLAN Data Portal, you have direct online access to high-quality MCT Brattberg catalogue from a continually growing pool of renowned component manufacturers. All of the solutions anchored in EPLAN Platform access this web service. Learn More.

Performance

Enclosure degree of protection:
- Nema 250 Type 4X
(Hose down 240 L/minute, freezing rain and X (as 4X) indicates additional corrosion resistance.)
- IP65 / IP67

Other

- Toxicity & halogen density

- Smoke density

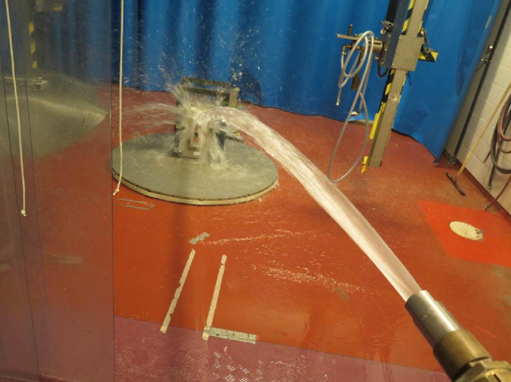

During hose down test



EPDM is Halogen Free and Low smoke.

Download Test Reports

Correct and safe installations

To achieve the highest standard of safety, a cable transit must be installed correctly. it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

RFCS Installation

Download PDF installation manual

Read more - Documents and Instructions
