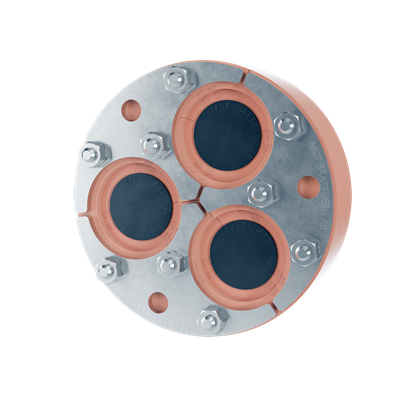

Duct Seal Trefoil

Intended to be used underground and in ducts.
On land Duct Seal ECO
  • Manufactured sustainable in Sweden.
  • Fully 100% recyclable materials.
  • To seal holes with aperture dimension 150 - 153 mm.
  • To seal services between 30 - 55 mm.
  • Cable OD marked on layers
  • Fast installation – one part & few layers
    (not three parts or heat shrinking)
  • Seal is 40mm allows extreme cable bending

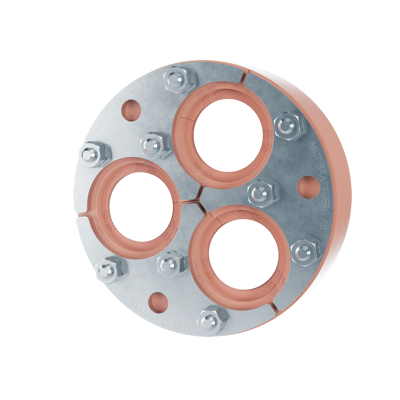

  • Incl. Plug (optional)

For more information visit Instructions and manuals


Performance Type Standard
IP Rating: IP68 IEC 60529
In-service Constant water pressure: 0,3 Bar. IEC 60529
In-service Catastrophic water pressure: 1,5 Bar Third party witness hydrostatic type testing, CP-0165
Pressure tested: 3 Bar Indoor hydrostatic testing, CP-0165
Trade name: MCT Brattberg DS-150 TF
Working Tempature: -65 to +70 degrees C
Hardness: 60-80 IRHD
Shelf life: ≥ 10 years
Service life: ≥ 40 years
Hardware: Stainless steel316
Sealing material Plastic elastomer


Working temperature
Working temperature, -65 to +70 °C
Ingress protection
Ingress protection, IP68
