E-Spareblock

EMC

All dimensions are exactly the same for the standard MCT Brattberg components.
All Insert Blocks are marked with yellow marking (see instructions).

Grounding and Bonding

For grounding & bonding applications standard presswedge or endpacking is sufficient.
Series RGS, RGB, RGG, and E-RGP These products are primarily intended for grounding and bonding of communication, instrument, power, braid or wire armored cables and copper pipes, up to max. 1 AWG.
Plugs and Wraps are only for use in Grounding and Bonding applications, not EMC
G&B datasheet

Correct and safe installations

To achieve the highest standard of safety, a cable or pipe transit must be installed correctly. As there are many different types of frame – which may be either welded, bolted or glued into position – and insert block, it is essential that installers known when to use the most appropriate installation method.

For more information, please view following instructions, videos or download manuals as PDFs.

Instruction documents

Installation Guide (pdf)

For more information visit Instructions and manuals

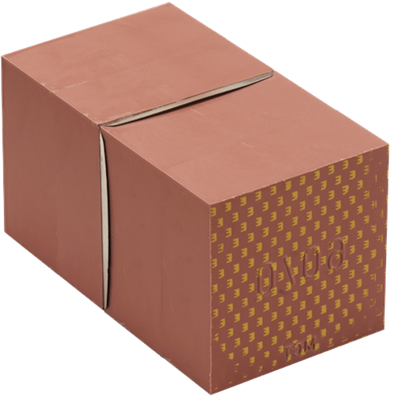

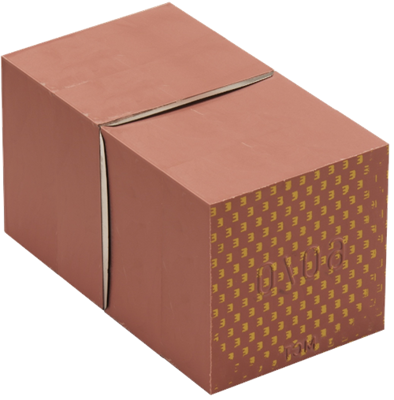

Called spares, they bear the designation A/0. The copper sheet forms contact between surrounding blocks and the frame. E-Blocks are referred to by their width, followed by the designation /0 (indicating solid). Thus a E-Block with a width and height of 15 mm is referred to as 15/0. The length of E-Blocks is always 60 mm.

Special and larger modules can be made to order.
